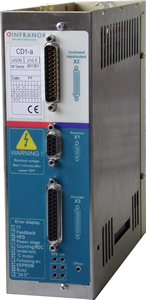

CD1-a DIGITAL SPEED DRIVE WITH ANALOG +/- 10 VOLTS INPUT FOR SINUSOIDAL BRUSHLESS AC MOTORS

Series CD1-a all digital servo modules are PWM servo amplifiers that provide speed control for AC sinusoidal motors (brushless) with transmitter resolver or encoder feedback sensors available in the same amplifier and selectable by software.
The CD1-a system is available as a stand-alone single-axis block including all supplies and mains filters, and is 230 VAC or 400/480 VAC mains operated. The user friendly parameter setting software Visual Drive Setup, which is IBM-PC compatible with the WINDOWS® operating system, allows the display of all amplifier parameters as well as their easy modification. The very small dimensions of the CD1-a amplifier allow an optimum integration in 300 mm deep cabinets (connectors included). The CD1-a amplifier directly controls motor torque and speed by means of the information provided either by a transmitter resolver or by an encoder sensor.
Both incremental or absolute encoder types can be used.

2 input voltage versions:
230 VAC: 1-phase and 3-phase
400 - 480 VAC: 3-phase

Current range:
230 V: 2.25 A / 4.5 A / 7.5 A / 10.5 A / 16.5 A
400 - 480 V: 1.8 A / 2.7 A / 5.1 A / 7.2 A / 14 A / 30 A / 45 A

Inputs/Outputs:
- 2 analog inputs (Speed Ref, Current Limit)
- 1 analog output (programmable)
- 6 dedicated logic inputs
- 1 dedicated relay output

Operation mode:
- Analog speed reference
- Electronic gearing
- Stepper motor emulation

Communication interface: serial link RS-232 (RS-422 optional) with external addressing switches

Programmable encoder output resolution: 64 to 16384 ppr.

Automatic functions:
Auto-tuning (automatic adjustment to the load)
Auto-phasing (automatic adjustment to motor and resolver)
Automatic offset compensation
Cogging Torque Compensation (option)

PC software tool: VDSetup

Dimensions (mm):
230 V: 200x199x65
400 V: 1.8 - 7.2 A: 230x230x65 / 14 A: 230x258x83 /
30 - 45 A: 230x288x110
